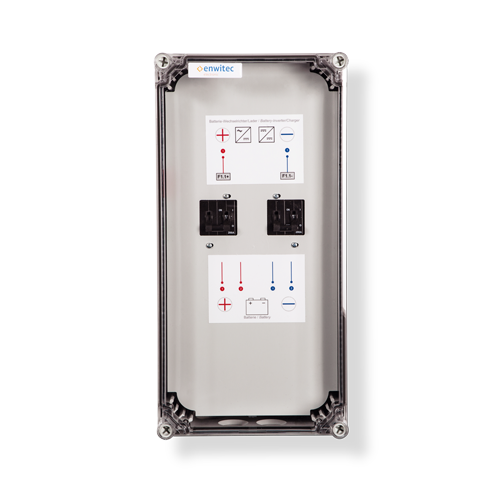

enwitec battery fuse (BAT BREAKER) Protection against overcurrent and short circuit for stationary or mobile battery storage systems of various technologies (lead, lithium…) and their cabling.
Number of battery chargers/inverters: Max. 1
Number of energy storage systems: Max. 2
Matchcode: BAT BREAKER -SLIM 200-
Item no.: 10011033
Fuse type: Magnetic-hydraulic
Number of battery chargers/inverters: 1
Number of parallel battery strings: 2
Max. DC voltage: 75 V
Rated current: 200A
Continuous operating current: 160A
Max. Operating current for 30 minutes: 180A
Tripping characteristic: DC – slow
Switchable max. short-circuit current: 10kA
Charger/inverter connection:
Connection to the battery: 2 x 16mm² – 120 mm² per potential
Temperature range up to: -25°C to +45°C (briefly 50°C)
Relative humidity: 5% to 95%
Battery cabinet dimensions WxHxD: 188x378x130mm
Total weight: 3.7 kg
Data sheet EN: 10011033_Data_sheet_BAT BREAKER-SLIM 200-_1.2
