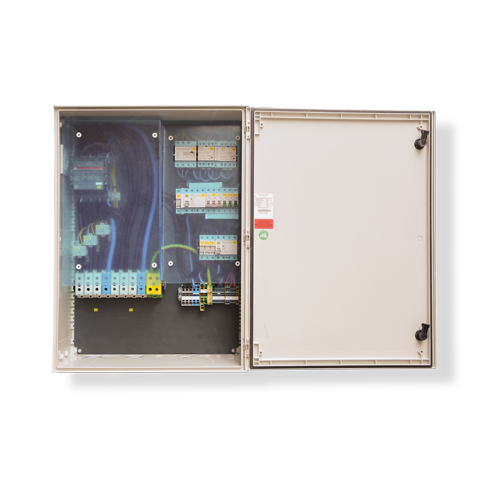

Mains switch box 3AC 230/400V 50Hz
– Connection fuse max. 250A
– All-pole disconnection, TN-S or TT system
– NO TN-C mains in the customer system
Battery inverters:
Sunny Island 4.4M-12 / -13 from firmware version 1.00.xx.R
Sunny Island 6.0H-12 / -13 from firmware version 1.00.xx.R
Sunny Island 8.0H-12 / -13 from firmware version 1.00.xx.R
Country availability: Germany, Switzerland
– integrated HOME-MANAGER 2.0
For further technical information, please download the documentation.
Note
Matchcode: 3PH_SMA.SI_BBDAP_125KVA_3PH_INT.HM_DACH_1.0
Item no.: 10013762
Compatible with: SMA
Phases: 3 phase
Mains disconnection: All-pole
Max. thermal throughput: 125 kW
Country code: Germany, Switzerland
NA protection: –
Source switch: –
Rated voltage: 230/400V
Rated frequency: 50/60 Hz
Short-circuit current: 10 kA
Back-up fuse: 250 A
Operating temperature range: -25°C to +40°C
Humidity: 5% to 95%
Protection class: II
Dimensions WxHxD: 600 x 800 x 300 mm
Weight: 36 kg
Housing: GRP
